For agricultural machinery manufacturers, choosing between RTP and CTP touchscreens is a crucial decision.
Equipment faces extreme conditions: harsh sunlight, dust, humidity, and moisture. Operators also need to use touchscreens while wearing gloves.
While capacitive touchscreens dominate consumer electronics, resistive touchscreens (RTP) often offer better reliability and value for outdoor displays.
This guide compares both technologies to help you select the best agricultural display for tractors, combines, and farming equipment.
RTP vs CTP Touchscreen: Understanding the Core Technologies
To make an informed choice, it’s essential to understand the fundamental operating principles behind these two technologies. They interact with users in completely different ways, which directly impacts their suitability for the field.
An RTP (Resistive Touch Panel) is a pressure-sensitive system composed of two flexible conductive layers separated by spacer dots. When pressed, the layers connect, completing a circuit and allowing the controller to calculate touch coordinates.
In contrast, a CTP (Capacitive Touch Panel) uses a grid of electrodes to create an electrostatic field. It detects touches when a conductive object (like a finger) disturbs this field, enabling precise, multi-touch input without physical pressure.
For a more detailed side-by-side comparison of these technologies, you can clearly see the differences between CTP and RTP in this article.
A Detailed Comparison Table for Agriculture：RTP vs CTP
The following table summarizes the critical differences to guide your selection process based on hard metrics and functional capabilities.
| Feature | Resistive Touch Screen (RTP) | Capacitive Touch Screen (CTP) |
|---|---|---|
| Input Method | Works with any input (glove, stylus, finger) | Requires a bare finger or special conductive stylus |
| Durability | Highly resistant to scratches, dust, and moisture; simpler structure | Requires expensive customizations (e.g., rugged glass, special ICs) for harsh conditions |
| Display Clarity | Moderate (~75-85% light transmittance); can appear hazy | Excellent (~90%+ light transmittance); provides a brighter, sharper image |
| Multi-Touch | Typically single-touch only | Native support for multi-touch gestures (pinch, zoom, swipe) |
| Cost | Lower cost solution, ideal for budget-sensitive projects | Higher initial component cost, plus added cost for necessary rugged customizations |

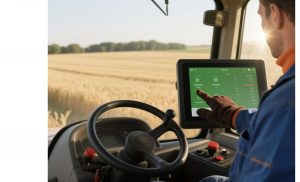

Why RTP Touchscreens Dominate in Agricultural Environments
When it comes to agricultural machinery, RTP technology stands out as the optimal choice, perfectly balancing functionality and economics. Its dominance stems from four key strengths that directly address the challenges of farming environments.
- Superior Durability and Operational Flexibility
RTP screens excel in agricultural settings by combining unmatched operational flexibility with inherent environmental resistance. - These displays deliver reliable performance with any input method—whether using bare fingers, gloved hands, or stylus—ensuring uninterrupted operation in all weather conditions. This eliminates the need for operators to remove protective gear during critical tasks.
- Simultaneously, their simple pressure-based design enables natural resistance to dust, moisture, and humidity, making them inherently durable enough to withstand the demanding conditions of agricultural work where more complex displays would fail.
Customizable Design with Cost-Effectiveness
A smart RTP solutions offer both practical customization and significant economic advantages.：
- Standard RTP products can be enhanced with PET cover lenses that improve aesthetics while also serving as integrated structural components.
- For applications requiring extra rigidity, PMMA reinforcement along the edges adds essential structural support without substantially increasing costs.
This practical approach to touchscreen technology continues to make RTP the preferred solution for farming applications where reliability, versatility, and cost management are paramount.

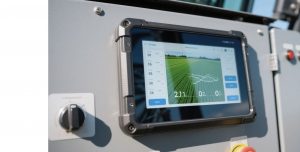

CTP Touchscreen: A Viable Ruggedized Option for Modern Machinery
It is an outdated misconception that capacitive touch screen technology is entirely unsuitable for outdoor use. Through significant engineering and customization, modern CTPs can be transformed into a highly durable and high-performance agricultural display. This process involves several key enhancements：
- Custom integrated circuits (ICs) can be programmed to recognize touch events through thin gloves and to actively reject false signals caused by water droplets on the screen.
- Pairing this smart IC with a cover lens made of chemically strengthened glass dramatically improves scratch and impact resistance.
- Finally, the process of optical bonding—laminating the touch panel directly to the LCD—reduces internal reflection, significantly improves sunlight readability, and prevents moisture ingress.
The result is a robust outdoor display that combines superior optical clarity and a modern user experience with enhanced durability. However, it is crucial to note that each of these enhancements adds to the overall Bill of Materials (BOM) cost.
RTP vs CTP Touchscreen: Making the Cost-Effective Choice
Q: How do I ultimately decide between RTP and CTP for my agricultural equipment?
A: The choice boils down to a strategic balance between user experience, environmental demands, and budget; the best technology is the one that most closely matches your specific operational and financial requirements.
Q: When should I definitely choose a Resistive Touch Screen (RTP)?
A: An RTP is the most pragmatic and cost-effective touch solution if your primary drivers are:
- Uncompromised Glove Operation: Operators will always be wearing heavy work gloves.
- Extreme Durability: The display will face constant exposure to abrasion, dust, and moisture.
- Minimizing Cost: The project is budget-sensitive, and you need reliable performance without a premium price tag.
Q: So, when does a Capacitive Touch Screen (CTP) make sense?
A: Choose CTP if your design requires:
- Modern UX: Multi-touch gestures and high-speed scrolling.
- Superior Clarity: Excellent optical performance for complex data and map visualization.
- Sleek Aesthetic: A glossy, modern look that aligns with a premium product brand.
Q: What is the most important step before finalizing my decision?
A: Consult closely with your display supplier. Clearly define your operational requirements and insist on obtaining test samples of both technologies.
